These instructions help you configure your Siemens HiCom/HiPath phone system to work with TIM Plus. Contact your system maintainer if you are not familiar with the configuration of your PBX.

Connection Type
  TIM Plus listens for connections from this PBX.

Support Files
  Siemens HiCom-HiPath.TDT
Required Tasks
  Configure the SMDR output
  Configure TIM Plus

Configuring your SMDR output

By default, the SMDR output of a Siemens HiCom/HiPath phone system is not enabled. Contact your system maintainer to enable it for incoming, outgoing and internal calls.

Configuring TIM Plus

Once NetPBX is configured and collecting data, log in to TIM Plus and perform the steps below:

  1. Click on the Directory tab.
  2. Choose the site you want to configure and clickProperties.

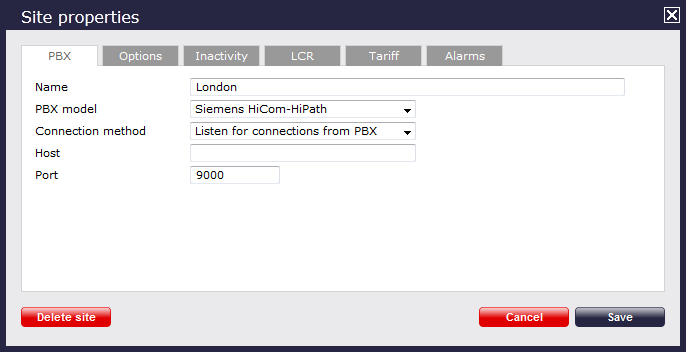

  3. In the Site Properties window, select Siemens HiCom-HiPath from the PBX model drop-down list.
  4. In the Connection method field, select Listen for connections from PBX from the drop-down list.
  5. Leave the Host field blank.
  6. In the Port field, enter 9000.
  7. Click on the Save button to apply the settings.
